Ranbyus's DGA, Revisited

Edit Dec. 8th, 2015: I found two additional samples. One of them uses a different tld ordering and an additional operation on the hardcoded seed. I left the original text as is and put the changes in as edits. Edit Jan. 25, 2016: found another seed: 0x572473BB Edit Mar. 2, 2016: found another seed: 0x17794CF1
Edit Apr. 7, 2016: found another seed: 0x7CB7966E

In May I wrote about the Domain Generation Algorithm (DGA) of the banking trojan Ranbyus. This week I stumbled on some new Ranbyus samples that use a significant modification of the DGA. For simplicity’s sake I call the DGA from the previous post the May DGA, and the DGA in this post the September DGA. However, I can’t tell if the chronology is correct; the DGA in this post might just as well be an earlier or concurrent version of the DGA reported in May.

The domains of the September version at first glance look like the ones from May. The second level domains consist of the letters a-y; the top level domains are the same and they appear in the same order, i.e., .in → .me → .cc → .su → .tw → .net → .com → .pw. (Edit: this newer sample uses the same TLDs in a different order: .in → .net → .org → .com → .me → .su → .tw → .cc → .pw)

For example, these are the first few domains from this report:

• rftkbenepisfitgdj.in
• xiqmvbjmhmhvmgcmi.me
• wxdunehygeonndttn.cc
• sbghxfgtslfpppqiu.su
• upixinckripequtam.tw
• oamxeavybfwlhqhob.net
• jkkugptcygpwxkjkw.com
• cvorpvaacmkfacelm.pw
• vptafodmeuaxopjbs.in
• eycagukbeduvmjnpx.me

The most striking difference to the May version is the increased length of the second level domains: the May version has 14 letters, while the September version uses 17 letters. As it turns out, the September DGA uses a vastly different algorithm to generate the second level domains.

The DGA

Seeding and Samples

Like the May DGA, the new DGA is seeded with the current date. It also produces 40 fresh domains (almost) every day. In addition to the new domains, the DGA will revisit the domains of up 30 days into the past.

Apart from the current date, the DGA is seeded with a hard-coded magic number, which allows for separate sets of domains. So far, the DGArchive collected seven different seeds for the DGA from May. For the new variant, I found seven seeds so far. Edit Dec. 8th, 2015: Some samples, e.g., b625b87a9dfdc345d226e913f9f95d77 and d8c247f95b2784419ffc14c8df8efc07, actually reverse the seed before applying it:

The following table lists the seed after negation so I could leave the reimplementation as is. The negated column shows the original seed before the NOT-operation.

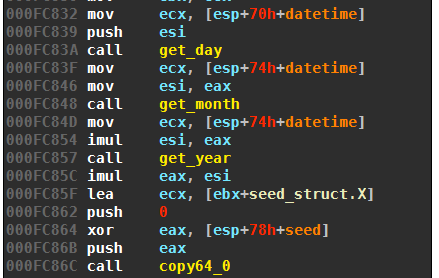

The way the current date influences the domains is different. The May DGA uses the year, month and day directly as variables to generate the letters of the second level domain. The September version condenses the date and the hard-coded magic number into a single 32bit value:

$$ X_0 = (\text{year} \cdot \text{month} \cdot \text{day}) \oplus \text{seed} $$

Consequently, all dates that have the same product of year, month and day will generate the same domains. For example, the domains from Januar 24 will be revisited six times the same year: February 12, March 8, April 6, June 4, August 3, and December 12. From a sinkholing perspective, it makes sense to pick a domain from this set.

Python Implementation

The DGA differs in the way the second level characters are picked. While the May version used a custom algorithm to determine the characters, the September edition relies on a pseudo random number generator (PRNG). The PRNG is of the LCG (linear congruential generator) family with common multiplier and increment:

You also find this code, along with a reimplementation of the other Ranbyus version, on my Github).

"""
    The DGA of Ranbyus as described here:
        https://bin.re/blog/ranbyuss-dga-revisited/

    Known Seeds are:
        - 0F0D5BFA
        - F2C72B14
        - AE8714BE
        - CE7F8514  (= ~ 31807AEB)
        - 572473BB (= ~ A8DB8C44)
        - 17794CF1 (= ~ E886B30E)
        - C0E32524 (= ~ 3F1CDADB)
"""

import argparse
from datetime import datetime

def to_little_array(val):
    a = 4*[0]
    for i in range(4):
        a[i] = (val & 0xFF)
        val >>= 8
    return a

def pcg_random(r):
    alpha = 0x5851F42D4C957F2D
    inc = 0x14057B7EF767814F

    step1 = alpha*r + inc
    step2 = alpha*step1 + inc
    step3 = alpha*step2 + inc

    tmp = (step3 >> 24) & 0xFFFFFF00 | (step3  & 0xFFFFFFFF) >> 24
    a = (tmp ^ step2) & 0x000FFFFF ^ step2
    b = (step2 >> 32)
    c = (step1 & 0xFFF00000)  | ((step3 >> 32) & 0xFFFFFFFF) >> 12
    d = (step1 >> 32) & 0xFFFFFFFF

    data = 32*[None]
    data[0:4] = to_little_array(a)
    data[4:8] = to_little_array(b)
    data[8:12] = to_little_array(c)
    data[12:16] = to_little_array(d)
    return step3 & 0xFFFFFFFFFFFFFFFF, data

def dga(year, month, day, seed):
    x = (day*month*year) ^ seed
    tld_index = day
    for _ in range(40):
        random = 32*[None]
        x, random[0:16] = pcg_random(x)
        x, random[16:32] = pcg_random(x)

        domain = ""
        for i in range(17):
            domain += chr(random[i] % 25 + ord('a'))
        if seed == 0xCE7F8514:
            tlds =  ["in", "net", "org", "com", "me", "su", "tw", "cc", "pw"]
        else:
            tlds =  ["in", "me", "cc", "su", "tw", "net", "com", "pw", "org"]
        domain += '.' + tlds[tld_index % (len(tlds) - 1)]
        tld_index += 1
        yield domain

if __name__=="__main__":
    parser = argparse.ArgumentParser()
    parser.add_argument("-d", "--date", help="date for which to generate domains")
    parser.add_argument("-s", "--seed", help="seed as hex string", default="0F0D5BFA")
    args = parser.parse_args()
    if args.date:
        d = datetime.strptime(args.date, "%Y-%m-%d")
    else:
        d = datetime.now()
    for domain in dga(d.year, d.month, d.day, int(args.seed, 16)):
        print(domain)

Please note that the above Python script only generates the 40 domains of the current day. Like the May version, Ranbyus can also revisit older domains up to 30 days into the past. So to get the full set of domains for any given day, you need to run the script for 31 different days.

Properties

Almost all characteristics of the Ranbyus September DGA are the same as for the May version. The only difference is the increased length of the second level domains:

Appendix - Reversing the DGA

Similarities with May version

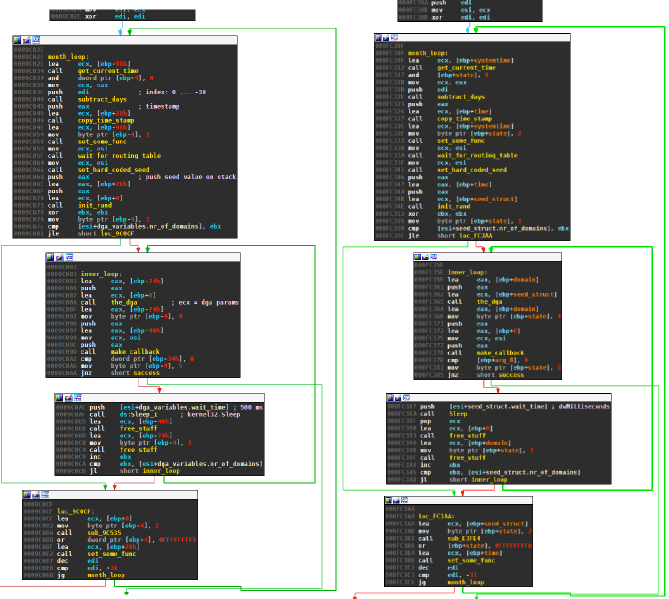

The new samples share most of the DGA code with the May version. The following graph views show the callback loop from May (left) and September (right):

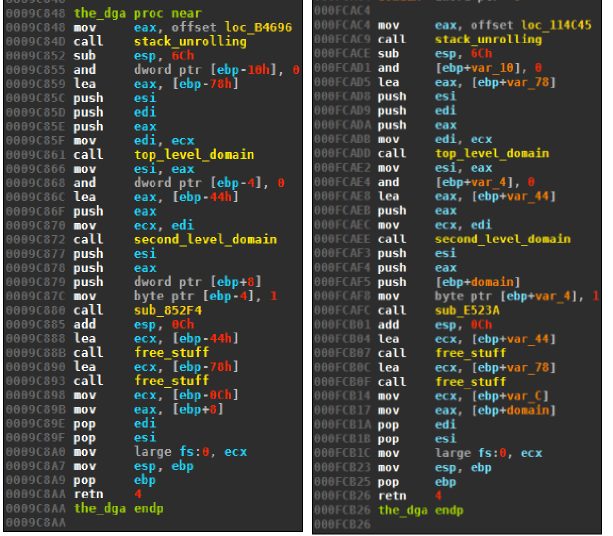

The basic structure of the DGA itself is also equal:

Most other DGA-related functions stayed the same too, in particular:

• The routine to determine the top level domain top_level_domain, i.e., the domains will have the same top level domains in the same order as the DGA from May.
• The routines to determine and handle the current date.
• The data structures to configure the DGA.

Differences to May version

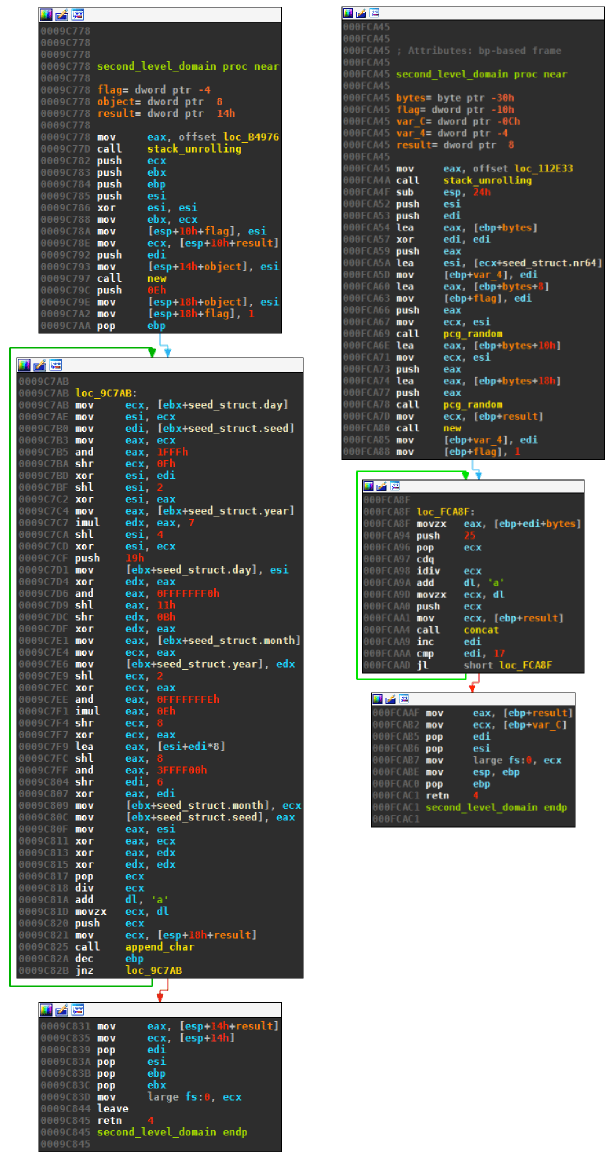

The main difference between the two DGAs is the routine to generate the second level domains:

The May DGA (on the left) uses a custom algorithm inside the loop body to produce a pseudo random number. The September version on the right first generates 32 bytes of random data using the pcg_random routine, and then simply accesses this data inside the loop body. Both version take the resulting pseudo random number modulo 25 to get letters from a to y.

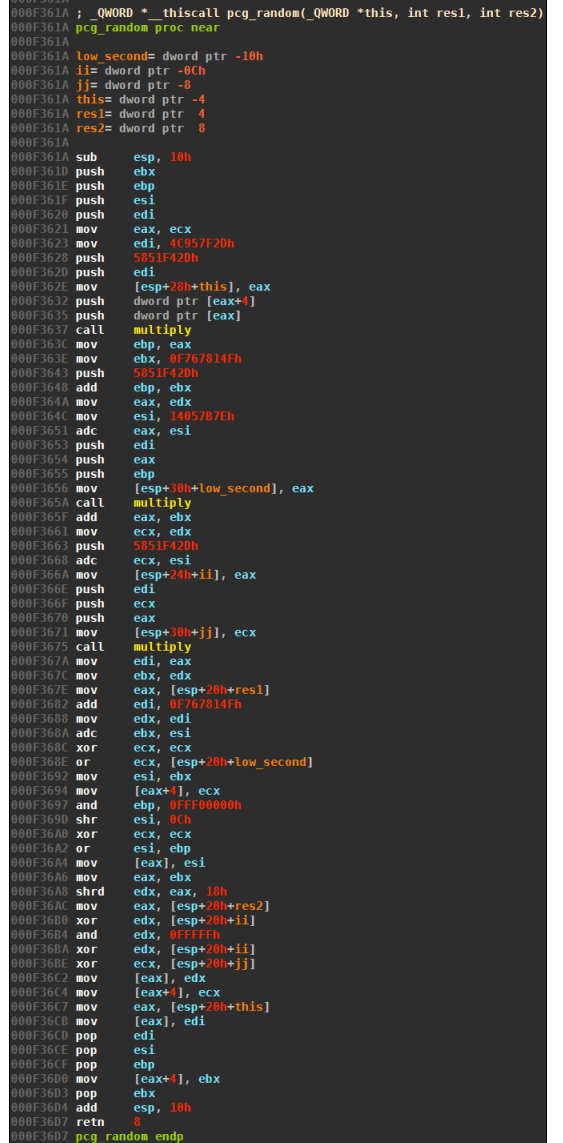

The pseudo random number generator is based on 64bit numbers, which make the routine a little hard to read:

At the core of the above routine is the following linear congruential generator:

$$ X_{n+1} = (6364136223846793005\cdot X_n + 1442695040888963407) \text{ mod } 2^{64} $$

The initial value $X_0$ is set to the product of year, month, and day, XORed with the hardcoded seed:
