This blog post presents my solutions to exercises from the book Practical Reverse Engineering by Bruce Dang, Alexandre Gazet and Elias Bachaalany (ISBN: 1118787315). The book is my first contact with reverse engineering, so take my statements with a grain of salt. All code snippets are on GitHub. For an overview of my solutions consult this progress page.

Exercise 1

Given what you learned about CALL and RET, explain how you would read the value of EIP? Why can’t you just do MOV EAX, EIP?

MOV EAX, EIP does not work, because EIP not an ordinary register. There is no real need to read the EIP, as is handled for you by the processor.

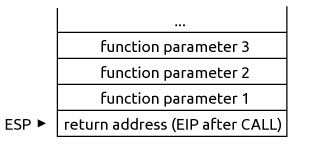

The CALL instruction places the EIP register onto the stack before jumping to the function address. So the stack entering the function looks like that:

We can therefore get the value of EIP by jumping to a dummy function read_eip (thereby placing EIP at the top of the stack), and then copying the value from the stack memory to a register, i.e., EAX:

SECTION  .data
SECTION  .text
GLOBAL _start
_start:
    nop
    call read_eip
    mov  ebx,0
    mov  eax,1
    int 080h

read_eip:
    mov eax, [esp]
    ret

Let’s test the code with gdb. The value of EIP before calling read_eip is 0x8048061:

$ nasm -f elf32 -g -F dwarf code.asm
$ ld -m elf_i386 -o code code.o
phreak@phreak:exercise 1]$ gdb -q code
Reading symbols from code...done.
(gdb) set disassemble-next-line on
(gdb) break *_start
Breakpoint 1 at 0x8048060: file code.asm, line 5.
(gdb) run
Starting program: /home/jb/pre/chapter_1/page_17/exercise_1/code

Breakpoint 1, _start () at code.asm:5
5	    nop
=> 0x08048060 <_start+0>:	90	nop
(gdb) s
6	    call read_eip
=> 0x08048061 <_start+1>:	e8 0c 00 00 00	call   0x8048072 <read_eip>
(gdb) p/x $eip
$1 = 0x8048061

If we inspect EAX right after the function call we get the value 0x8048066; which now is also the value of EIP.

(gdb) s
_start () at code.asm:7
7	    mov  ebx,0
=> 0x08048066 <_start+6>:	bb 00 00 00 00	mov    $0x0,%ebx
(gdb) p/x $eax
$3 = 0x8048066
(gdb) p/x $eip
$3 = 0x8048066

So in fact we get the EIP after the CALL, which is 5 bytes (the number of bytes for the instruction code CALL) greater than before the CALL.

Exercise 2

Come up with at least two code sequences to set EIP to 0xAABBCCDD

I know three instructions that manipulate the EIP:

1. RET
2. JMP
3. CALL

Version 1 – Based on RET

The instruction RET jumps to the address stored at the top of the stack, i.e., sets the EIP to the double word stored at ESP. So by pushing the desired address on the stack, followed by RET, should set the EIP:

SECTION  .data
SECTION  .text
GLOBAL _start
_start:
    nop
    push 0AABBCCDDh
    ret

We can check with the GNU debugger:

(gdb) s
6	    push 0AABBCCDDh
(gdb) p/x $eip
$1 = 0x8048061
(gdb) s
_start () at version_1.asm:7
7	    ret
(gdb) s
0xaabbccdd in ?? ()
(gdb) p/x $eip
$2 = 0xaabbccdd

Version 2 – Based on JMP

Instead of pushing the address on the stack and using RET to jump to an address, doing a plain JMP also works:

SECTION  .data
SECTION  .text
GLOBAL _start
_start:
    nop
    jmp 0AABBCCDDh

Again let’s check with the GNU debugger:

(gdb) s
6	    jmp 0AABBCCDDh
(gdb) p/x $eip
$1 = 0x8048061
(gdb) s
0xaabbccdd in ?? ()
(gdb) p/x $eip
$2 = 0xaabbccdd

Version 3 – Based on CALL

CALL works similar to JMP (compared to version 2 it does an unnecessary push of the EIP to the stack):

SECTION  .data
SECTION  .text
GLOBAL _start
_start:
    nop
    call 0AABBCCDDh

In GNU debugger:

(gdb) s
6	    call 0AABBCCDDh
(gdb) p/x $eip
$1 = 0x8048061
(gdb) s
0xaabbccdd in ?? ()
(gdb) p/x $eip
$2 = 0xaabbccdd

Exercise 3

In the example function, addme, what would happen if the stack pointer were not properly restored before executing RET?

You can see the addme function below, with the referenced instruction highlighted:

SECTION  .data
SECTION  .text
GLOBAL _start
_start:
    nop
    mov eax, 7
    mov ecx, 5
_before:
    push eax
    push ecx
    call add_me
    add esp, 8
_after:
    mov  ebx,0
    mov  eax,1
    int 080h

add_me:
    push ebp
    mov ebp, esp
    movsx eax, word [ebp+8]
    movsx eax, word [ebp+0Ch]
    add eax, ecx
    mov esp, ebp
    pop ebp
    retn

The restore is part of the function epilogue, which is standard for C-style functions. Resetting the ESP ensures that any values placed on the stack whithin the function, but not cleaned up, don’t mess with the RET statement. If, for instance, the function would have pushed a value on the stack but never retrieve it, then the RET instruction would jump to this location instead of the EIP. Restoring the ESP prevents this. But if the function properly cleans the stack there is no need to backup and restore the ESP. In the present add_me function there are not instruction that modify the ESP between the prologue and epilogue. So there is no need to restore the ESP, removing the instruction will have no effect.

Here’s validation with the GNU debugger, first with the restore instruction:

$ gdb -q addme_with_restore
Reading symbols from addme_with_restore...done.
(gdb) break *_before
Breakpoint 1 at 0x804806b: file addme_with_restore.asm, line 9.
(gdb) break *_after
Breakpoint 2 at 0x8048075: file addme_with_restore.asm, line 14.
(gdb) run
Starting program: /home/baderj/chapter 1/page 17/exercise 3/addme_with_restore

Breakpoint 1, _before () at addme_with_restore.asm:9
9	    push eax
(gdb) p/x $esp
$1 = 0xffffd000
(gdb) c
Continuing.

Breakpoint 2, _after () at addme_with_restore.asm:14
14	    mov  ebx,0
(gdb) p/x $esp
$2 = 0xffffd000

and the same without the restore instruction:

Breakpoint 1, _before () at addme_without_restore.asm:9
9	    push eax
(gdb) p/x $esp
$1 = 0xffffd000
(gdb) c
Continuing.

Breakpoint 2, _after () at addme_without_restore.asm:14
14	    mov  ebx,0
(gdb) p/x $esp
$2 = 0xffffd000

Exercise 4

In all of the calling conventions explained, the return value is stored in a 32-bit register (EAX). What happens when the return value does not fit in a 32-bit register? Write a program to experiment and evaluate your answer. Does the mechanism change from compiler to compiler?

I use the following C code:

#include <stdio.h>

struct data
{
    int n1;
    int n2;
};

struct data test_return(void) {
    struct data test_object;
    test_object.n1 = 7;
    test_object.n2 = 5;
    return test_object;
}

int main (int argc, char *argv[] )
{
    struct data ret;
    ret = test_return();
    int res = (ret.n1 + ret.n2);
    return res;
}

The struct contains two integer values and should therefore be bigger than 32bit. I use gcc to compile the code:

gcc -fno-asynchronous-unwind-tables -masm=intel -Os -S -m32 code.c

The full output is on GitHub, here’s the function excerpt:

test_return:
	push    ebp
	mov     ebp, esp
	mov     eax, DWORD PTR [ebp+8]
	mov     DWORD PTR [eax], 7
	mov     DWORD PTR [eax+4], 5
	pop     ebp
	ret     4

• Line 2 and 3 are part of the standard function prologue.
• Line 3 gets the value from stack [EBP + 8].
• Line 4 and 5 store the values 5,7 at the location referenced by EAX, i.e., [EBP+8].
• Line 6 and 7 are the function epilogue.

The return value is placed in memory at a location given by the stack [EBP+8]. So in order to use the function, the caller needs to reserve space for the struct in memory, and push the address onto the stack before calling the function. Compiling the c code with -Os flag produces assembly code where the function is never called (since the return value is always 12). To see the call I recompiled the code with -O0. The function now contains unnecessary mov statements, but in essence is the same (see GitHub for full output).

The main function now does call the function:

main:
	push	ebp
	mov	ebp, esp
	sub	esp, 20
	lea	eax, [ebp-8]
	mov	DWORD PTR [esp], eax
	call	test_return

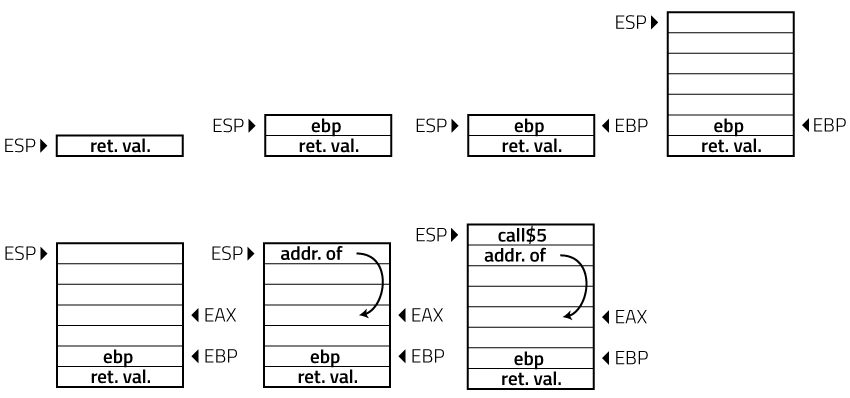

In Line 4 the call sub esp, 20 reserves 20 bytes on stack. The next two instructions get the address of [EBP-8], and put the value on the stack. The following images shows how the stack changes for the six lines above:

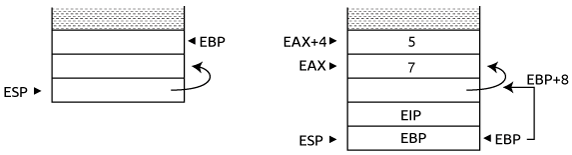

The value at the top of the stack contains the address of the stack memory at ESP+4. The stack before the function epilogue, i.e., after mov DWORD PTR [eax+4], 5 looks like the right hand side of the above image. EAX contains the value of the memory at [EBP+8], and therefore contains the address of the stack at EBP+12. The function places the member n1 of the struct at EAX (= EBP+12) and the member n2 at EAX+4 (= EBP+16).

So long story short, the function places its return value on the stack and returns the address of the stack location to the caller. The caller has to reserve the necessary space on the stack and has to pass the address to that reserved space to the function (doesn’t therefore need to check the return value, the caller knows the address already).

I got very similar results with Clang. Again the caller reserves space for the structure and moves the address to the free space last on the stack (lea edx, dword ptr [ebp - 32], and mov dword ptr [esp], edx):

sub	esp, 40
mov	eax, dword ptr [ebp + 12]
mov	ecx, dword ptr [ebp + 8]
lea	edx, dword ptr [ebp - 32]
mov	dword ptr [ebp - 4], 0
mov	dword ptr [ebp - 8], ecx
mov	dword ptr [ebp - 12], eax
mov	dword ptr [esp], edx
call	test_return

Clang moves more stuff on the stack, but that’s probably a matter of optimization. The function looks almost the same as for GCC:

push	ebp
mov	ebp, esp
sub	esp, 8
mov	eax, dword ptr [ebp + 8]
mov	dword ptr [ebp - 8], 7
mov	dword ptr [ebp - 4], 5
movsd	xmm0, qword ptr [ebp - 8]
movsd	qword ptr [eax], xmm0
add	esp, 8
pop	ebp
ret	4

Instead of moving to stack space below EBP (i.e., at higher addresses), Clang moves the data above the EBP (at lower addresses). The function doesn’t use the pointer passed by the caller, but reserve the space within the function doing sub esp, 8 in line 3.
