Crackmes.de – seVeb's crackme05
This crackme has been published September 9th, 2014. It was written by seVeb, and rated 1 – Very easy, for newbies It runs on Linux and was written in C/C++. The description says
Welcome to crackme05 reverser!
Your task is simple, figure out a way to generate valid serials.
Patching is as expected not allowed. Write a keygen and tell us
how you solved the crackme.Invoke the crackme with the –help or -h flag for additional help.
Introduction
The first few lines of the crackme check if there is at least one argument. If arguments are missing, the usage statement is shown with a call to usage:
.text:0804852D public main .text:0804852D main proc near ; DATA XREF: _start+17o .text:0804852D .text:0804852D var_10C = dword ptr -10Ch .text:0804852D var_108 = dword ptr -108h .text:0804852D args = dword ptr -100h .text:0804852D var_F8 = dword ptr -0F8h .text:0804852D var_F3 = dword ptr -0F3h .text:0804852D var_82 = dword ptr -82h .text:0804852D var_10 = dword ptr -10h .text:0804852D var_C = dword ptr -0Ch .text:0804852D argc = dword ptr 8 .text:0804852D argv = dword ptr 0Ch .text:0804852D .text:0804852D push ebp .text:0804852E mov ebp, esp .text:08048530 push edi .text:08048531 push esi .text:08048532 push ebx .text:08048533 and esp, 0FFFFFFF0h .text:08048536 sub esp, 100h ; char * .text:0804853C mov eax, [ebp+argv] .text:0804853F mov [esp+10Ch+args], eax .text:08048543 mov eax, large gs:14h .text:08048549 mov [esp+10Ch+var_10], eax .text:08048550 xor eax, eax .text:08048552 cmp [ebp+argc], 1 .text:08048556 jg short loc_8048570 .text:08048558 mov eax, [esp+10Ch+args] .text:0804855C mov eax, [eax] .text:0804855E mov [esp+10Ch+var_10C], eax .text:08048561 call usage .text:08048566 mov eax, 1 .text:0804856B jmp loc_8048732 .text:08048570 ; --------------------------------------------------------------------------- .text:08048570 .text:08048570 loc_8048570: ; CODE XREF: main+29j .text:08048570 mov [esp+10Ch+var_F8], 0 .text:08048578 jmp short loc_80485E5
Next the code checks if the first argument is either-h or –help. If it isn’t, we end up here:
.text:08048600 mov eax, [esp+10Ch+args] .text:08048604 add eax, 4 .text:08048607 mov eax, [eax] .text:08048609 mov [esp+10Ch+var_10C], eax .text:0804860C call rock
The code gets the value argv[1] (the first commandline argument, i.e., the serial) and puts it on top of the stack ([esp+10Ch+var_10C] is in fact [esp]). The serial is the only argument to the rock subroutine called next.
Rock

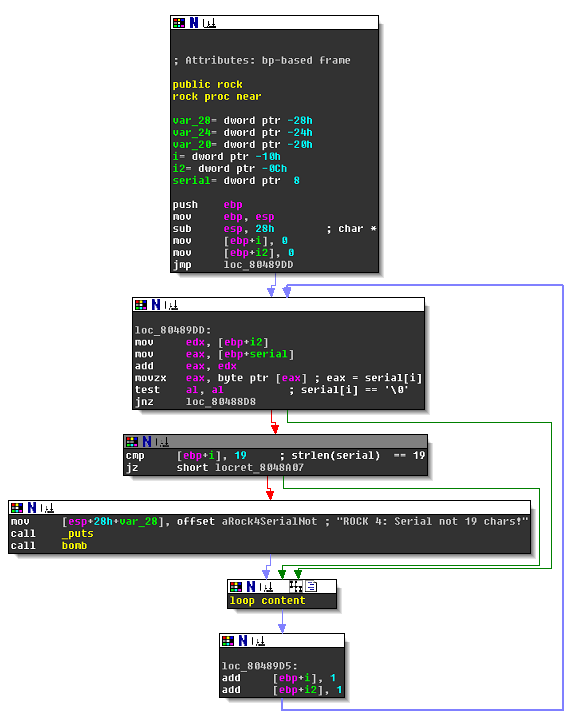

The graph view of rock, with most of the blocks grouped, looks as follows:
From this picture you can clearly see a loop (backward pointing, bold blue arrow). The local variables at ebp-10h and ebp-0Ch serve as redundant loop counters, I renamed them two i and i2 respectively. The loop iterates over all characters in serial, i.e., until the terminating zero byte is reached. The length of the serial, as the loop counter i, is compared to 19. If the serial length is not 19, the bad boy message is shown with call bomb:
ROCK 4: Serial not 19 chars!
,--.!,
__/ -*-
,d08b. '|`
0088MM
`9MMP'
I have not failed. I've just found 10,000 ways that won't work.
- Thomas Edison
The content inside the loop is assessed most readily with the graph view of IDA. At the bottom of the subroutine we see 3 bad boy nodes:
We clearly need to find a path that avoids those nodes.
First Hurdle
The content of the loop starts with the following node:
If the jump is taken, we get to one of the bomb message. The register edx holds the loop counter i, and eax points to the serial. By adding the two registers and dereferencing the result we get al = serial[i]. In the following I’m using c=serial[i] to refer to the current serial character. The jump is not taken if c > 44.
Second Hurdle
We enter the second stage if c > 44:
The bomb message is shown if both jumps are not taken. So either c <= 45 (we take the first jump), or c > 45 && c > 47 (we take the second jump). So after the second hurdle we have c == 45 || c > 47.
Third Hurdle

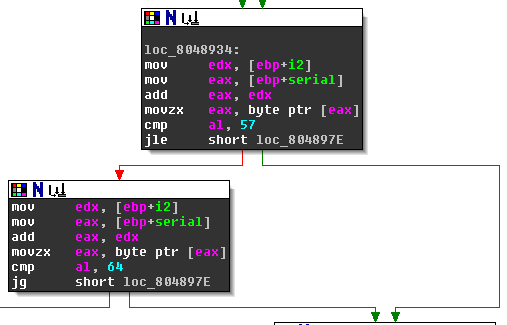

We enter the next stage withc == 45 || c > 47:
Again the bomb goes off if both jumps are *not* taken. This can be avoided with c <= 57 or c > 57 && c > 64. Together with what we already know this gives us c = 45 || 47 < c <= 57 || c > 64.
Fourth Hurdle

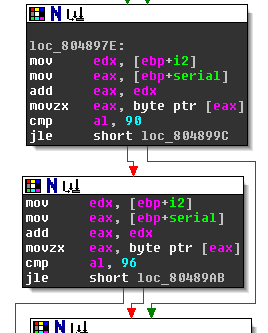

The next stage is reached with c = 45 || 47 < c <= 57 || c > 64:
The bomb detonates when the jump in the second node is take. So either the jump in the first node is taken with c <= 90 or the jump in the second node is not taken with c > 96 && c > 96. We end up with c = 45 || 47 < c <= 57 || 64 < c <= 90 || c > 96.
Fifth (and Last) Hurdle
The final hurdle is shown in Figure:
The bomb does not go off if the jump is taken, therefore c <= 122. So all in all we have:
c = 45 || 47 < c <= 57 || 64 < c <= 90 || 96 < c <= 122
Or by using the corresponding ASCII characters:
c = '-' || '0' <= c <= '9' || 'a' <= c <= 'z' || 'A' <= c <= 'Z'
Conclusion: If our serial has exactly 19 characters from the following set, the bomb won’t detonate (just yet):
- 0123456789
- abcdefghijklmnopqrstuvwxyz
- ABCDEFGHIJKLMNOPQRSTUVXWYZ
Paper
After rock follows a call to paper, again serial is the only argument:
.text:08048A09 ; ||||||||||||||| S U B R O U T I N E ||||||||||||||||||||||||||||||||||||||| .text:08048A09 .text:08048A09 ; Attributes: bp-based frame .text:08048A09 .text:08048A09 public paper .text:08048A09 paper proc near ; CODE XREF: main .text:08048A09 .text:08048A09 var_28 = dword ptr -28h .text:08048A09 var_10 = dword ptr -10h .text:08048A09 var_C = dword ptr -0Ch .text:08048A09 serial = dword ptr 8 .text:08048A09 .text:08048A09 push ebp .text:08048A0A mov ebp, esp .text:08048A0C sub esp, 28h ; char * .text:08048A0F mov eax, [ebp+serial] .text:08048A12 add eax, 8 .text:08048A15 movzx edx, byte ptr [eax] .text:08048A18 mov eax, [ebp+serial] .text:08048A1B add eax, 0Ah .text:08048A1E movzx eax, byte ptr [eax] .text:08048A21 xor eax, edx .text:08048A23 movsx eax, al .text:08048A26 add eax, 30h .text:08048A29 mov [ebp+var_10], eax .text:08048A2C mov eax, [ebp+serial] .text:08048A2F add eax, 5 .text:08048A32 movzx edx, byte ptr [eax] .text:08048A35 mov eax, [ebp+serial] .text:08048A38 add eax, 0Dh .text:08048A3B movzx eax, byte ptr [eax] .text:08048A3E xor eax, edx .text:08048A40 movsx eax, al .text:08048A43 add eax, 30h .text:08048A46 mov [ebp+var_C], eax .text:08048A49 cmp [ebp+var_10], 39h .text:08048A4D jg short loc_8048A55 .text:08048A4F cmp [ebp+var_C], 39h .text:08048A53 jle short loc_8048A68 .text:08048A55 .text:08048A55 loc_8048A55: ; CODE XREF: paper+44j .text:08048A55 mov [esp+28h+var_28], offset aPaper1 ; "Paper 1" .text:08048A5C call _puts .text:08048A61 call bomb .text:08048A66 jmp short loc_8048A85 .text:08048A68 ; --------------------------------------------------------------------------- .text:08048A68 .text:08048A68 loc_8048A68: ; CODE XREF: paper+4Aj .text:08048A68 cmp [ebp+var_10], 2Fh .text:08048A6C jle short loc_8048A74 .text:08048A6E cmp [ebp+var_C], 2Fh .text:08048A72 jg short loc_8048A85 .text:08048A74 .text:08048A74 loc_8048A74: ; CODE XREF: paper+63j .text:08048A74 mov [esp+28h+var_28], offset aPaper1Lower ; "Paper 1 lower" .text:08048A7B call _puts .text:08048A80 call bomb .text:08048A85 .text:08048A85 loc_8048A85: ; CODE XREF: paper+5Dj .text:08048A85 ; paper+69j .text:08048A85 mov eax, [ebp+serial] .text:08048A88 add eax, 3 .text:08048A8B movzx eax, byte ptr [eax] .text:08048A8E movsx eax, al .text:08048A91 cmp eax, [ebp+var_10] .text:08048A94 jnz short loc_8048AA7 .text:08048A96 mov eax, [ebp+serial] .text:08048A99 add eax, 0Fh .text:08048A9C movzx eax, byte ptr [eax] .text:08048A9F movsx eax, al .text:08048AA2 cmp eax, [ebp+var_10] .text:08048AA5 jz short loc_8048ABA .text:08048AA7 .text:08048AA7 loc_8048AA7: ; CODE XREF: paper+8Bj .text:08048AA7 mov [esp+28h+var_28], offset aPaper2 ; "Paper 2" .text:08048AAE call _puts .text:08048AB3 call bomb .text:08048AB8 jmp short locret_8048AEA .text:08048ABA ; --------------------------------------------------------------------------- .text:08048ABA .text:08048ABA loc_8048ABA: ; CODE XREF: paper+9Cj .text:08048ABA mov eax, [ebp+serial] .text:08048ABD movzx eax, byte ptr [eax] .text:08048AC0 movsx eax, al .text:08048AC3 cmp eax, [ebp+var_C] .text:08048AC6 jnz short loc_8048AD9 .text:08048AC8 mov eax, [ebp+serial] .text:08048ACB add eax, 12h .text:08048ACE movzx eax, byte ptr [eax] .text:08048AD1 movsx eax, al .text:08048AD4 cmp eax, [ebp+var_C] .text:08048AD7 jz short locret_8048AEA .text:08048AD9 .text:08048AD9 loc_8048AD9: ; CODE XREF: paper+BDj .text:08048AD9 mov [esp+28h+var_28], offset aPaper3 ; "Paper 3" .text:08048AE0 call _puts .text:08048AE5 call bomb .text:08048AEA .text:08048AEA locret_8048AEA: ; CODE XREF: paper+AFj .text:08048AEA ; paper+CEj .text:08048AEA leave .text:08048AEB retn .text:08048AEB paper endp .text:08048AEB .text:08048AEC
The code decompiles to:
void paper(char* serial)
{
char t1 = (serial[8] ^ serial[10]) + 48;
char t2 = (serial[5] ^ serial[13]) + 48;
if ( t1 > 57 || t2 > 57 )
// FAIL: "Paper 1"
if ( v2 <= 47 || v3 <= 47 )
// FAIL: "Paper 1 lower"
if ( serial[3] != t1 || serial[15] != t2 )
// FAIL: "Paper 2"
if ( serial[0] != t2 || serial[18] != v3) )
// FAIL: "Paper 3"
//OK
}
As long as those four if-conditionas are not met, we survive the paper stage.
Scissors
After paper follows a call to scissors, again serial is the only argument:
.text:08048AEC ; ||||||||||||||| S U B R O U T I N E ||||||||||||||||||||||||||||||||||||||| .text:08048AEC .text:08048AEC ; Attributes: bp-based frame .text:08048AEC .text:08048AEC public scissors .text:08048AEC scissors proc near ; CODE XREF: main+101p .text:08048AEC .text:08048AEC var_28 = dword ptr -28h .text:08048AEC var_10 = dword ptr -10h .text:08048AEC var_C = dword ptr -0Ch .text:08048AEC serial = dword ptr 8 .text:08048AEC .text:08048AEC push ebp .text:08048AED mov ebp, esp .text:08048AEF sub esp, 28h ; char * .text:08048AF2 mov eax, [ebp+serial] .text:08048AF5 add eax, 1 .text:08048AF8 movzx eax, byte ptr [eax] .text:08048AFB movsx edx, al .text:08048AFE mov eax, [ebp+serial] .text:08048B01 add eax, 2 .text:08048B04 movzx eax, byte ptr [eax] .text:08048B07 movsx eax, al .text:08048B0A add eax, edx .text:08048B0C mov [ebp+var_10], eax .text:08048B0F mov eax, [ebp+serial] .text:08048B12 add eax, 10h .text:08048B15 movzx eax, byte ptr [eax] .text:08048B18 movsx edx, al .text:08048B1B mov eax, [ebp+serial] .text:08048B1E add eax, 11h .text:08048B21 movzx eax, byte ptr [eax] .text:08048B24 movsx eax, al .text:08048B27 add eax, edx .text:08048B29 mov [ebp+var_C], eax .text:08048B2C cmp [ebp+var_10], 0AAh .text:08048B33 jle short loc_8048B3E .text:08048B35 cmp [ebp+var_C], 0AAh .text:08048B3C jg short loc_8048B51 .text:08048B3E .text:08048B3E loc_8048B3E: ; CODE XREF: scissors+47j .text:08048B3E mov [esp+28h+var_28], offset aScissors1 ; "Scissors 1" .text:08048B45 call _puts .text:08048B4A call bomb .text:08048B4F jmp short locret_8048B6A .text:08048B51 ; --------------------------------------------------------------------------- .text:08048B51 .text:08048B51 loc_8048B51: ; CODE XREF: scissors+50j .text:08048B51 mov eax, [ebp+var_10] .text:08048B54 cmp eax, [ebp+var_C] .text:08048B57 jnz short locret_8048B6A .text:08048B59 mov [esp+28h+var_28], offset aScissors2 ; "Scissors 2" .text:08048B60 call _puts .text:08048B65 call bomb .text:08048B6A .text:08048B6A locret_8048B6A: ; CODE XREF: scissors+63j .text:08048B6A ; scissors+6Bj .text:08048B6A leave .text:08048B6B retn .text:08048B6B scissors endp
The disassembly boils down to this function:
void scissors(char* serial)
{
char t1 = serial[1] + serial[2];
char t2 = serial[16] + serial[17];
if ( t1 <= 170 || t2 <= 170 )
// FAIL: "Scissors 1"
if ( t1 == t2 )
// FAIL: "Scissors 2";
// OK
}
Cracker
After rock, paper and scissors does not follow lizard, but cracker:
.text:08048B6C ; ||||||||||||||| S U B R O U T I N E ||||||||||||||||||||||||||||||||||||||| .text:08048B6C .text:08048B6C ; Attributes: bp-based frame .text:08048B6C .text:08048B6C public cracker .text:08048B6C cracker proc near ; CODE XREF: main+112p .text:08048B6C .text:08048B6C var_28 = dword ptr -28h .text:08048B6C var_C = dword ptr -0Ch .text:08048B6C serial = dword ptr 8 .text:08048B6C .text:08048B6C push ebp .text:08048B6D mov ebp, esp .text:08048B6F sub esp, 28h ; char * .text:08048B72 mov eax, [ebp+serial] .text:08048B75 add eax, 4 .text:08048B78 movzx eax, byte ptr [eax] .text:08048B7B movsx edx, al .text:08048B7E mov eax, [ebp+serial] .text:08048B81 add eax, 9 .text:08048B84 movzx eax, byte ptr [eax] .text:08048B87 movsx eax, al .text:08048B8A add edx, eax .text:08048B8C mov eax, [ebp+serial] .text:08048B8F add eax, 0Eh .text:08048B92 movzx eax, byte ptr [eax] .text:08048B95 movsx eax, al .text:08048B98 add eax, edx .text:08048B9A mov [ebp+var_C], eax .text:08048B9D cmp [ebp+var_C], 87h .text:08048BA4 jz short loc_8048BB9 .text:08048BA6 mov [esp+28h+var_28], offset aCracker1 ; "cracker 1" .text:08048BAD call _puts .text:08048BB2 call bomb .text:08048BB7 jmp short locret_8048BEB .text:08048BB9 ; --------------------------------------------------------------------------- .text:08048BB9 .text:08048BB9 loc_8048BB9: ; CODE XREF: cracker+38j .text:08048BB9 mov ecx, [ebp+var_C] ; ecx = 135 .text:08048BBC mov edx, 55555556h ; eax = 1431655766 .text:08048BC1 mov eax, ecx ; eax = 135 .text:08048BC3 imul edx ; edx = 45, eax = 90 .text:08048BC5 mov eax, ecx ; eax = 135 .text:08048BC7 sar eax, 1Fh ; eax = 0 .text:08048BCA sub edx, eax ; edx = 45 .text:08048BCC mov eax, edx ; eax = 45 .text:08048BCE add eax, eax ; eax = 90 .text:08048BD0 add eax, edx ; eax = 135 .text:08048BD2 sub ecx, eax ; ecx = 0 .text:08048BD4 mov edx, ecx ; edx = 0 .text:08048BD6 test edx, edx ; zf=1 .text:08048BD8 jz short locret_8048BEB ; jump always taken .text:08048BDA mov [esp+28h+var_28], offset aCracker1 ; "cracker 1" .text:08048BE1 call _puts .text:08048BE6 call bomb .text:08048BEB .text:08048BEB locret_8048BEB: ; CODE XREF: cracker+4Bj .text:08048BEB ; cracker+6Cj .text:08048BEB leave .text:08048BEC retn .text:08048BEC cracker endp
The snippet has one strange part starting at offset loc_8048BB9. I added comments on every line to show that the whole sequence does nothing, no matter what the serial is, this sequence will always jump over the bomb message in line 08048BE6. We only need to worry about the code before, which decompiles to:
void cracker(char* serial)
{
if ( serial[9] + serial[4] + serial[14] != 135)
// FAIL: "cracker 1";
// OK
}
Since the smallest ASCII code of the allowed characters is 45 (for the dash -), the condition boils down to:
void cracker(char* serial)
{
if ( serial[9] != 45 || serial[4] != 45 || serial[14] != 45)
// FAIL: "cracker 1";
// OK
}
Decraycray
If all four stages - rock, paper, scissors and crackers are passed without detonating the bomb, you get to those lines:
.text:08048644 lea eax, [esp+10Ch+var_82] .text:0804864B mov edx, offset aPassedSerialIs ; "Passed serial is invalid! Just flip you"...
Why is the code loading a Passed serial is invalid… message even though the bombs did not go off?
Next follow a lot of lines that I won’t discuss in detail. All they do is generate a second string. The code sequence leads to a call to decraycray, which take the Passed serial as one argument, and the generated string as the second argument:
.text:08048776 ; ||||||||||||||| S U B R O U T I N E ||||||||||||||||||||||||||||||||||||||| .text:08048776 .text:08048776 ; Attributes: bp-based frame .text:08048776 .text:08048776 public decraycray .text:08048776 decraycray proc near ; CODE XREF: main+1FBp .text:08048776 ; bomb+E5p .text:08048776 .text:08048776 var_28 = dword ptr -28h .text:08048776 var_C = dword ptr -0Ch .text:08048776 crypto = dword ptr 8 .text:08048776 key = dword ptr 0Ch .text:08048776 .text:08048776 push ebp .text:08048777 mov ebp, esp .text:08048779 sub esp, 28h ; int .text:0804877C mov [ebp+var_C], 0 .text:08048783 jmp short loc_80487AC .text:08048785 ; --------------------------------------------------------------------------- .text:08048785 .text:08048785 loc_8048785: ; CODE XREF: decraycray+43j .text:08048785 mov edx, [ebp+var_C] .text:08048788 mov eax, [ebp+key] .text:0804878B add eax, edx .text:0804878D movzx edx, byte ptr [eax] .text:08048790 mov ecx, [ebp+var_C] .text:08048793 mov eax, [ebp+crypto] .text:08048796 add eax, ecx .text:08048798 movzx eax, byte ptr [eax] .text:0804879B xor eax, edx .text:0804879D movsx eax, al .text:080487A0 mov [esp+28h+var_28], eax .text:080487A3 call _putchar .text:080487A8 add [ebp+var_C], 1 .text:080487AC .text:080487AC loc_80487AC: ; CODE XREF: decraycray+Dj .text:080487AC mov edx, [ebp+var_C] .text:080487AF mov eax, [ebp+crypto] .text:080487B2 add eax, edx .text:080487B4 movzx eax, byte ptr [eax] .text:080487B7 test al, al .text:080487B9 jnz short loc_8048785 .text:080487BB mov [esp+28h+var_28], 0Ah .text:080487C2 call _putchar .text:080487C7 leave .text:080487C8 retn .text:080487C8 decraycray endp
All this snippet does is iterate over all characters in the first argument, and XOR the characters with the corresponding character from the second argument:
void decraycray(char* crypto, char* key)
{
for ( int i = 0; crypto[i]; i++ )
printf("%c", crypto[i] ^ key[i];
}
The subroutine implements an XOR cipher. The key length is at least as long as the ciphertext, therefore the decryption can turn the “Passed serial is invalid… ciphertext into any other message by choosing an appropriate key. Since there are no more bombs to defuse in this crackme, we can take an educated guess that the XOR decryption will turn the Passed serial is invalid… into the good boy message.
Keygen
Writing a keygen is trivial. One only needs to enforce the four check rock, paper, scissors and cracker. My keygen first generates a random serial by picking 19 characters from the allowed character set. I then try to fix this serial by setting individual characters. For example, since paper dictates that:
48 <= (serial[8] ^ serial[10]) + 48 <= 57
I set serial[8] to one of the characters that XORed with serial[10] meets this condition. Only about 6.2% of the time fixing the serial does not work because at some point a condition can`t be fixed. The keygen in Python 2.7 just retries with a different starting point in those cases:
import string
import random
class NoChoices(Exception):
pass
def random_serial():
def random_crit(crit, valid_chars):
candidates = filter(crit, valid_chars)
if len(candidates) == 0:
raise NoChoices("Can't satisfy {}".format(repr(crit)))
return random.choice(candidates)
## Rock
lowercase = string.ascii_lowercase
uppercase = string.ascii_uppercase
digits = string.digits
minus = '-'
valid_chars = [ord(o) for o in lowercase + uppercase + digits + minus]
serial = [random.choice(valid_chars) for i in range(19)]
## Paper
serial[8] = random_crit(lambda x: (x^serial[10]) <= 9, valid_chars)
serial[5] = random_crit(lambda x: (x^serial[13]) <= 9, valid_chars)
t1 = (serial[8] ^ serial[10]) + 48
serial[3] = t1
serial[15] = t1
t2 = (serial[5] ^ serial[13]) + 48
serial[0] = t2
serial[18] = t2
## Scissors
serial[1] = random_crit(lambda x: x + serial[2] > 170, valid_chars)
serial[16] = random_crit(lambda x: x + serial[17] > 170 and
serial[1] + serial[2] != x + serial[17],
valid_chars)
## Cracker
serial[4], serial[9], serial[14] = 45,45,45
return "".join([chr(c) for c in serial])
def create_serial():
while True:
try:
return random_serial()
except NoChoices:
# 6.2 % chance of failure
pass
print(create_serial())
For example:
$ python keygen.py 0st4-vGDj-n1Nv-4vW0 $ python keygen.py | xargs ./crackme05_64bit In order to succeed you must fail, so that you know what not to do the next time. -Anthony J. D'Angelo Good Job!
